Description

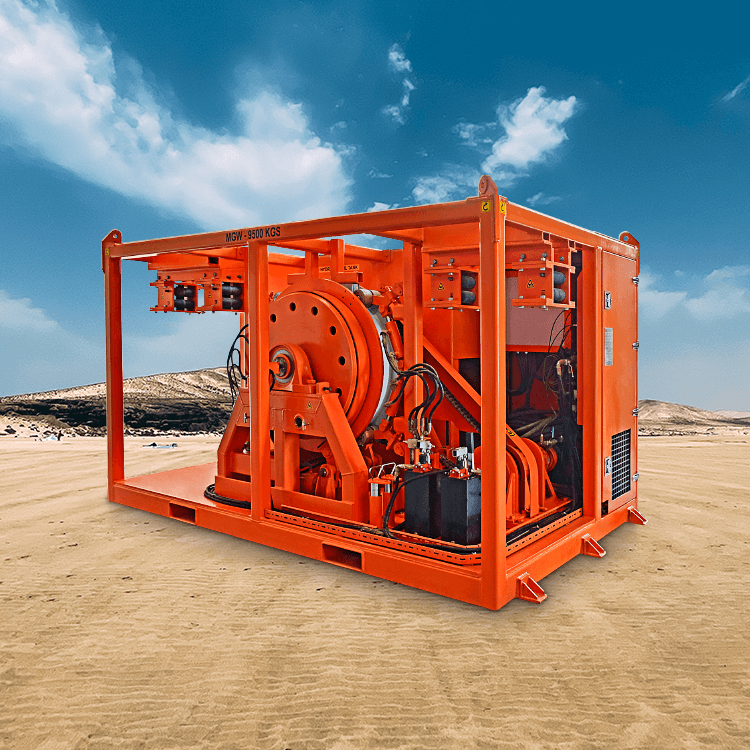

» Single capstan type drum mechanism
» Drum manufactured out of cast steel & machined with side flanges
» Maximum pulling capacity – 7.0 tonnes
» Maximum speed – 20 m/min (Operating Speed reduces at high pulling capacities)
» Suitable for cable diameters from 20 to 22.5mm
» Drum drive mechanism with a combination of Sprocket, Chain, Planetary gearbox & Dual displacement hydraulic piston type motor to achieve a total torque of 35000 Nm
» Unit comes with 2 brakes. Hydraulic Cylinder operated band brake & Disc brake connected directly to the drive motor. In addition, the unit has a mechanical lock to lock the drum during stand by operation.
» Entire assembly mounted in skid structure with fork lift pockets & lifting eyes
» Ex-rated Electrical motor driven HPU
» Maximum power capability of 50 kW. 3-Phase, 380-440 V, 50Hz, 4 Pole, 1450 rpm
» Installed with electric motor Ex-rated starter panel
» Hydraulic Oil cooler with required cooling capacity for continuous operation Interconnecting hydraulic conduits required for the unit
